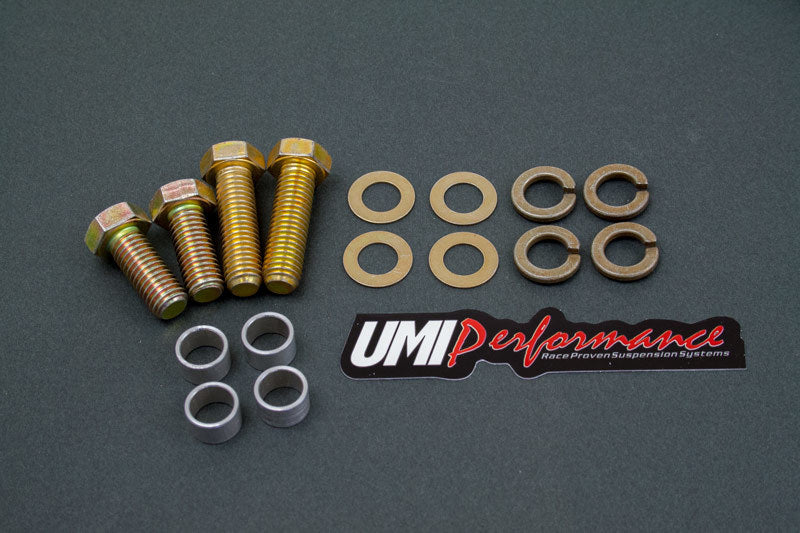

UMI Performance 82-02 GM F-Body Rear Torque Arm Hardware Kit Moser 12-Bolt

This kit is highly recommended when installing an aftermarket torque arm to the Moser 12-bolt rear end. The Moser 12-Bolt rear end is supplied with four ½” mounting holes while most aftermarket torque arms are built with 5/8” mounting holes. The reduced thread connection from the thicker torque arm mount and slop found in the mounting holes can cause torque arm damage and bolts to loosen. This kit adapts UMI’s torque arm bracket to the Moser 12-bolt differential housing. By using carefully selected bolt lengths and specially designed spacers, excess play is minimized and strength and reliability are maximized. This kit will also fit other aftermarket brackets which use 5/8” diameter mounting holes and 3/8” bracket thickness. The P/N 2998 kit is the finishing touch to ensure a bulletproof system. This product is designed and manufactured with pride in Philipsburg, PA-USA.

This Part Fits:

Year	Make	Model	Submodel
1988,1993-2002	Chevrolet	Camaro	Base
1982-1986	Chevrolet	Camaro	Berlinetta
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1985-1990	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	LT
1989-1992,1996-1997	Chevrolet	Camaro	RS
1992	Chevrolet	Camaro	RS Heritage Edition
1982-1987	Chevrolet	Camaro	Sport
1982-1987,1991-2002	Chevrolet	Camaro	Z28
1992	Chevrolet	Camaro	Z28 Heritage Edition
1982	Chevrolet	Camaro	Z28 Indianapolis 500 Pace Car
1998-2002	Chevrolet	Camaro	Z28 SS
1982-2002	Pontiac	Firebird	Base
1989-2002	Pontiac	Firebird	Formula
1982-1986	Pontiac	Firebird	S/E
1982-2002	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
1989-1992	Pontiac	Firebird	Trans Am GTA
1989	Pontiac	Firebird	Trans Am GTA SE
