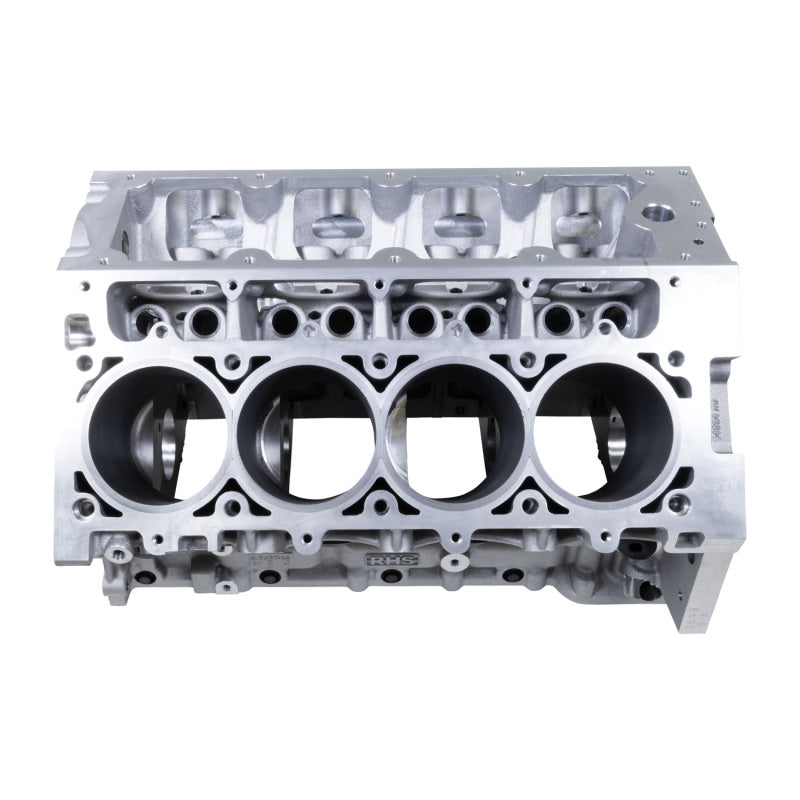

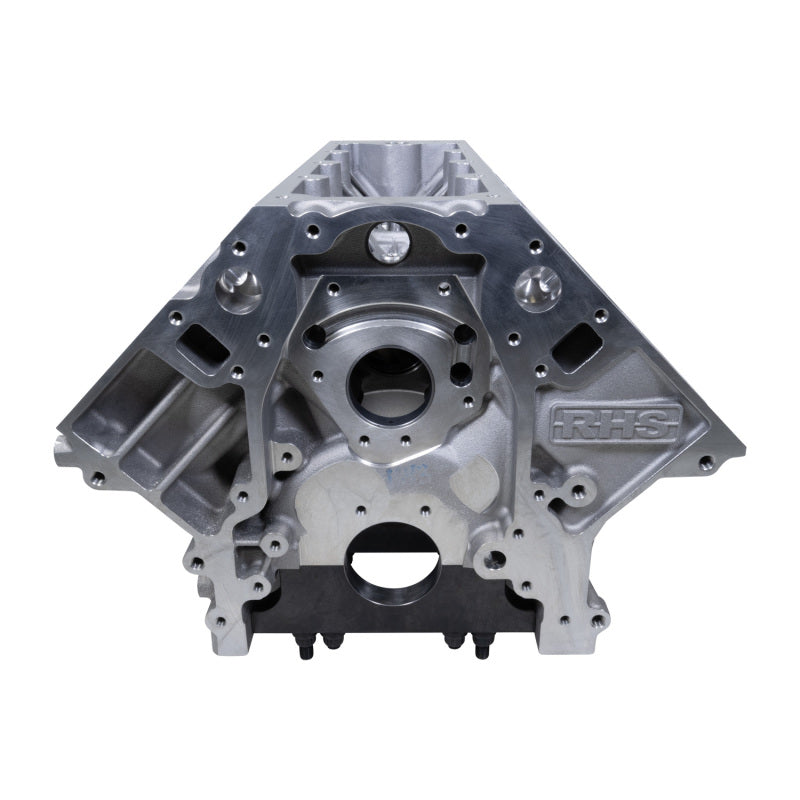

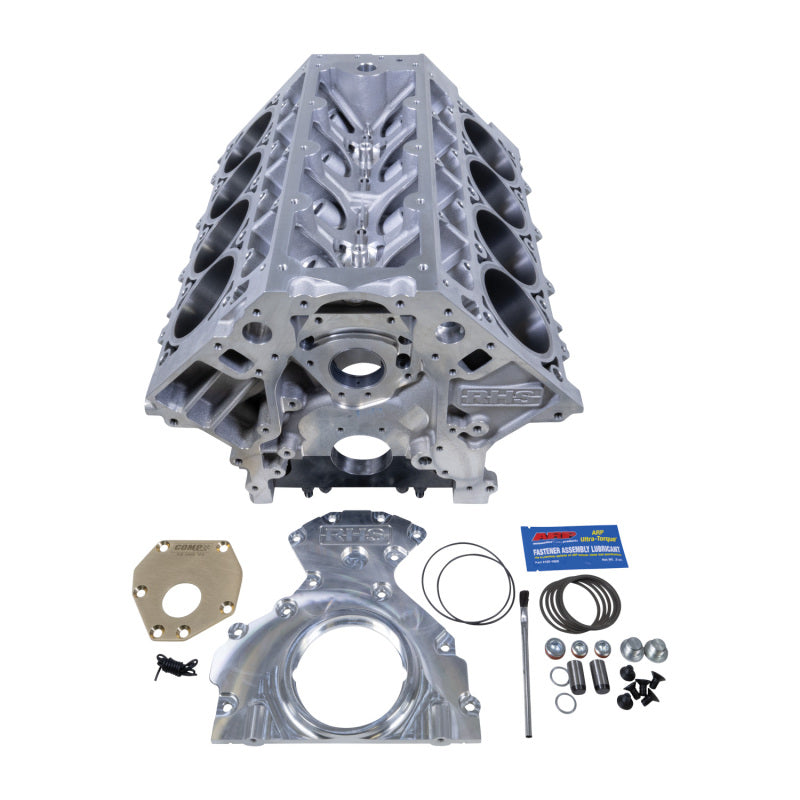

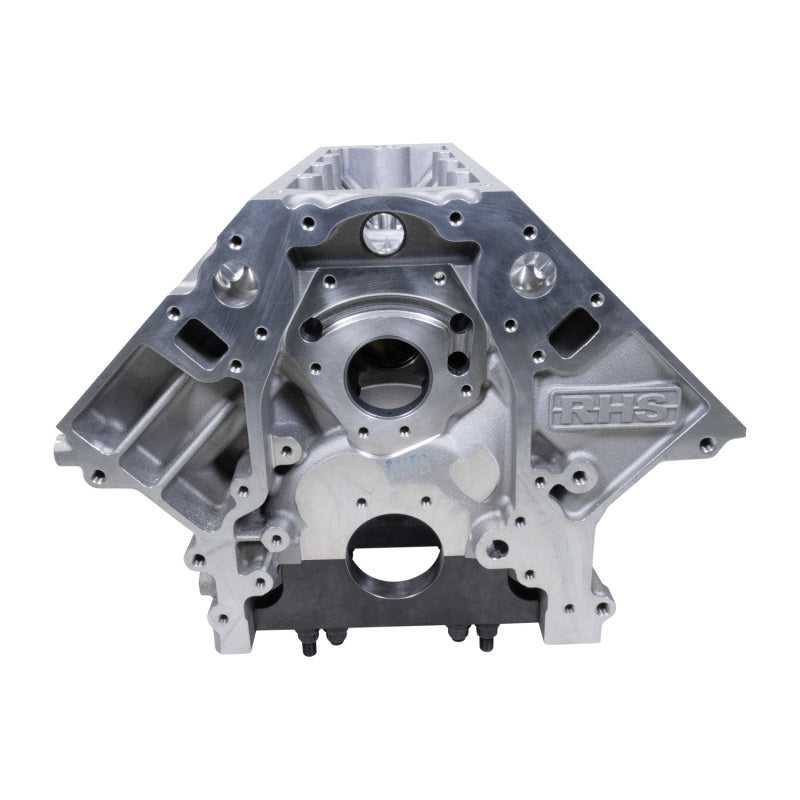

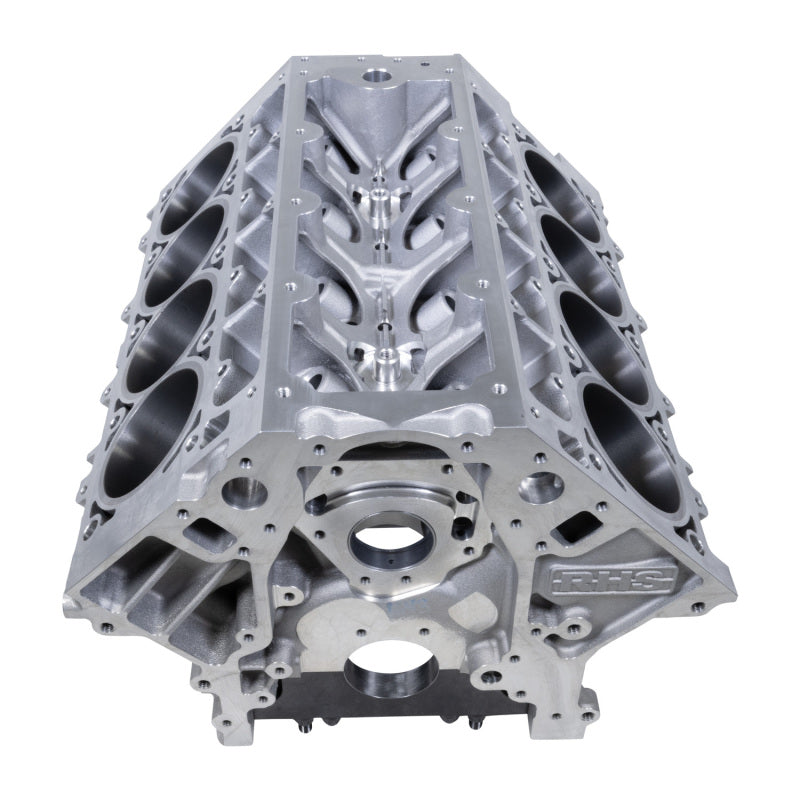

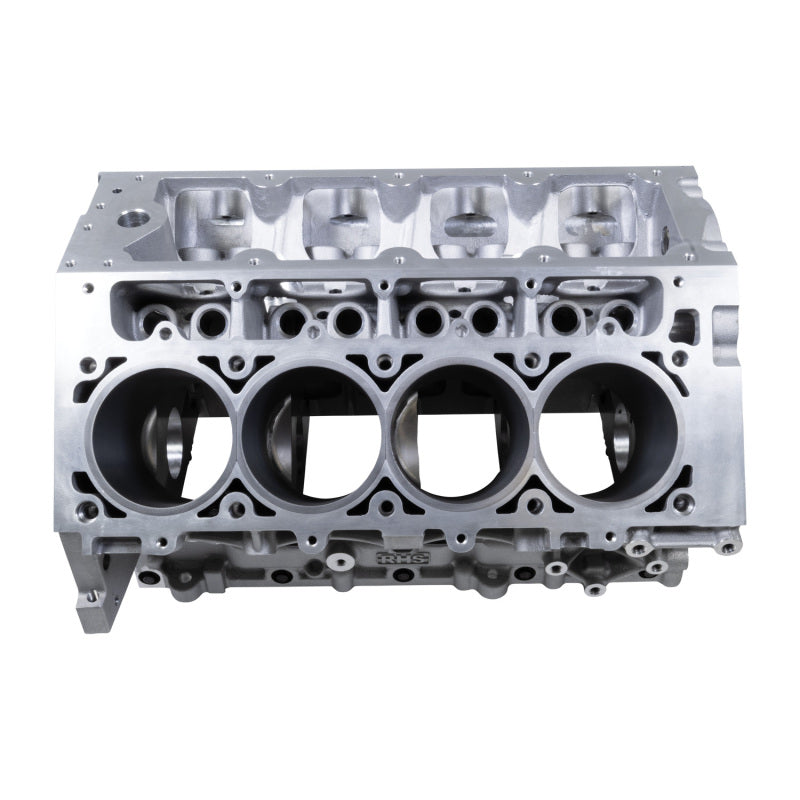

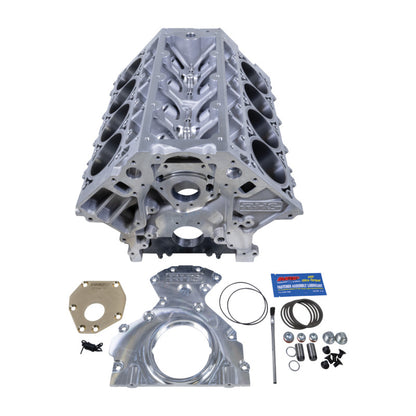

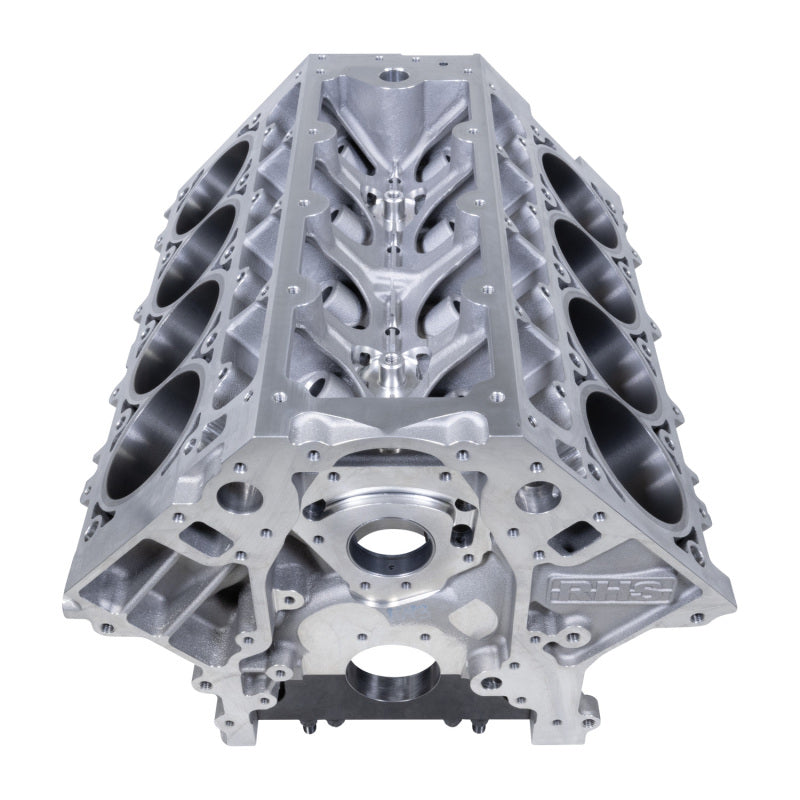

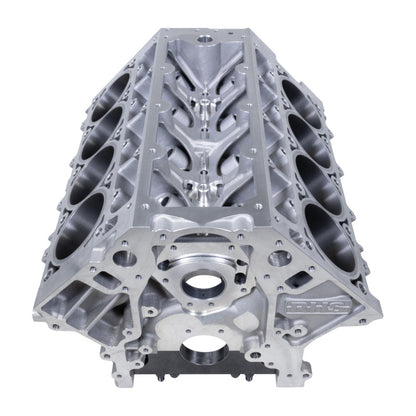

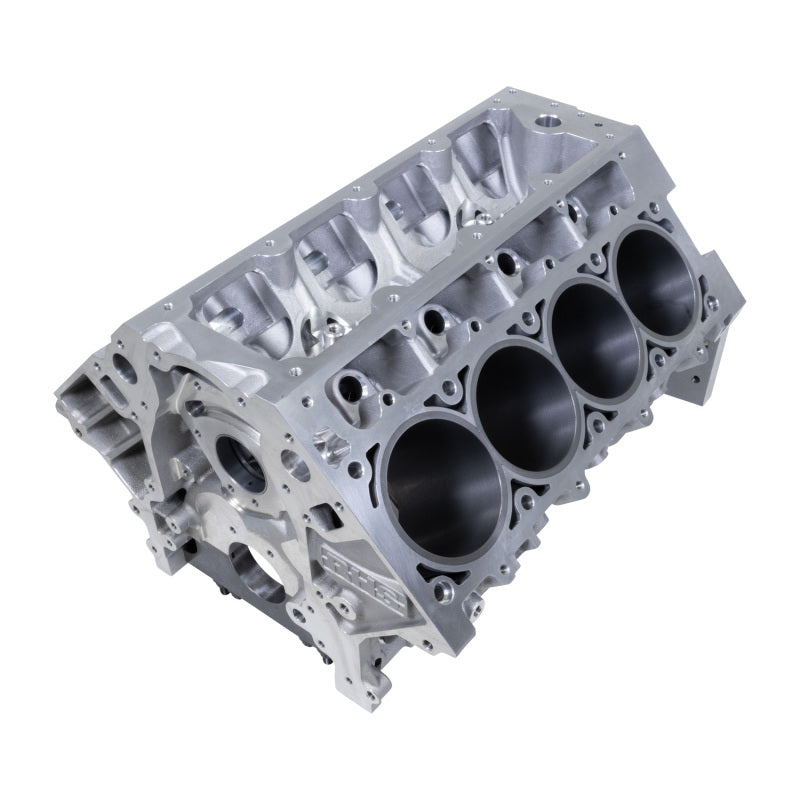

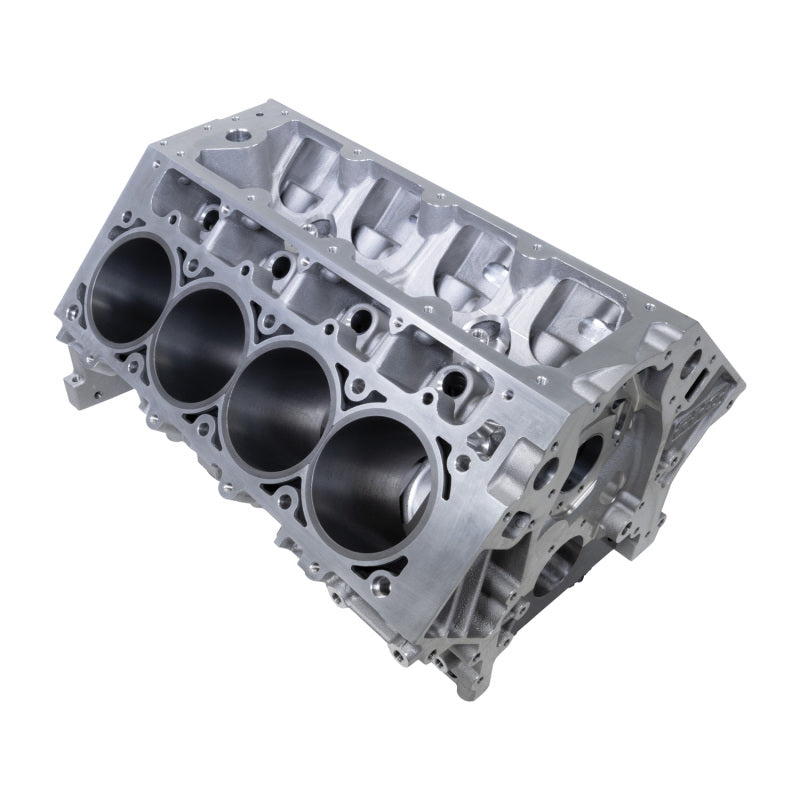

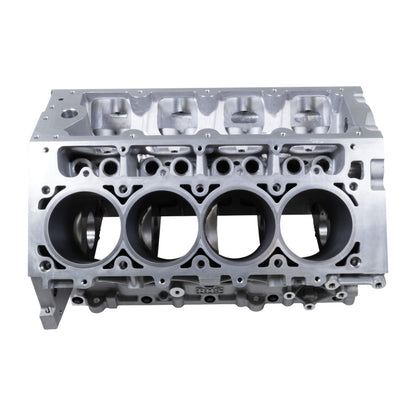

Block Specifications: Designed from heavy-duty A357-T6 aluminum material, 4.125”-4.165” siamese cast bore walls w/ press-in spun cast iron liner, Available in standard (9.240”) & tall (9.750”) deck heights w/ beefy .750” deck thickness, Both standard deck (5.67”/5.87”- same as LS7) & tall deck (5.94”/6.38”) cylinder liner lengths available, “Long arm friendly” – Accommodations for up to 4.6” stroke w/ standard rod pin diameters (2.100”) & oversized 60mm camshaft, Main cap surface area maximized at mating surface & large fillets from cap to cross bolts for added strength, Designed for clearance – side oil galley moved outboard & engineered rod clearance come standard, Significantly increased windage passage area under bores & around caps over LS7/LSX engines, 6 head bolt design w/ full water jacket around the cylinders (based on LS7 design), Bay-to-bay breathing improved w/ increased side window area versus LSX & LS7, Extra-large windows in valley for access to inboard “6th” head bolt, Extra-long liners for standard (5.87”) & tall (6.38”) decks
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001-2004 | Avanti | II | Base |
| 2006-2007 | Cadillac | CTS | V |
| 2010-2015 | Chevrolet | Camaro | SS |
| 2014-2015 | Chevrolet | Camaro | Z/28 |
| 1998-2002 | Chevrolet | Camaro | Z28 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS |
| 2013 | Chevrolet | Corvette | 427 |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car |
| 1997-2013 | Chevrolet | Corvette | Base |
| 2010-2013 | Chevrolet | Corvette | Grand Sport |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2006-2013 | Chevrolet | Corvette | Z06 |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2014-2017 | Chevrolet | SS | Base |
| 2005-2006 | Chevrolet | SSR | Base |
| 2006-2009 | Chevrolet | Trailblazer | SS |
| 1998-2002 | Pontiac | Firebird | Formula |
| 1998-2002 | Pontiac | Firebird | Trans Am |
| 2009 | Pontiac | G8 | GXP |
| 2004-2006 | Pontiac | GTO | Base |
| 2008-2009 | Saab | 9-7x | Aero |
