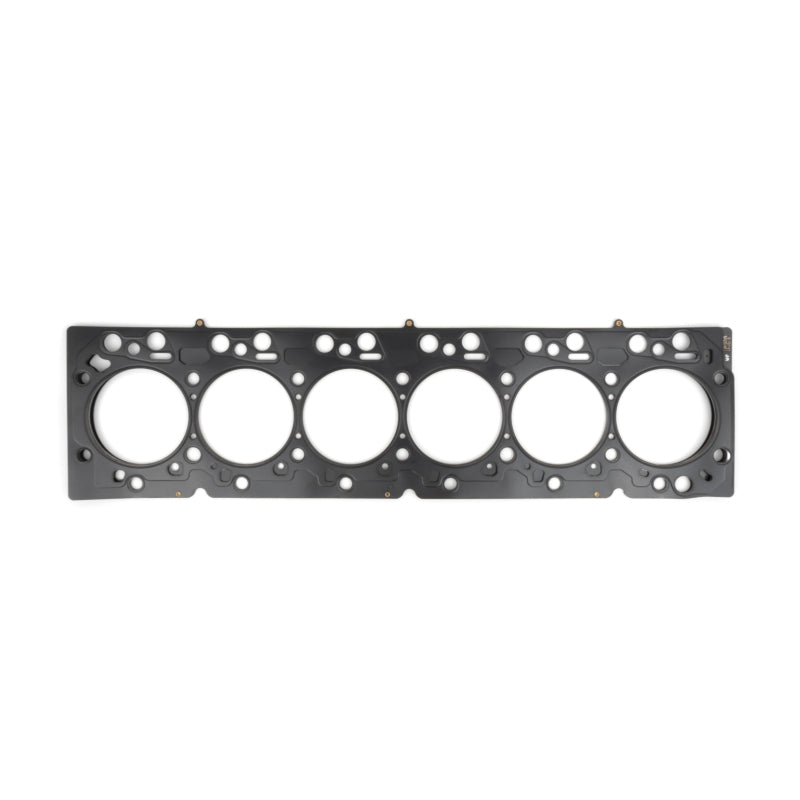

Cometic Cummins 6.7L ISB .067in MLX Cylinder 4.312in Bore Head Gasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
2007-2011	Freightliner	Sprinter 2500	Base
2007-2011	Freightliner	Sprinter 3500	Base
2011-2018	Ram	2500	Laramie
2016-2018	Ram	2500	Limited
2012-2016	Ram	2500	Outdoorsman
2011-2018	Ram	2500	SLT
2011-2013	Ram	2500	ST
2013-2018	Ram	2500	Tradesman
2011-2018	Ram	3500	Laramie
2016-2018	Ram	3500	Limited
2011-2018	Ram	3500	SLT
2011-2013	Ram	3500	ST
2013-2018	Ram	3500	Tradesman
