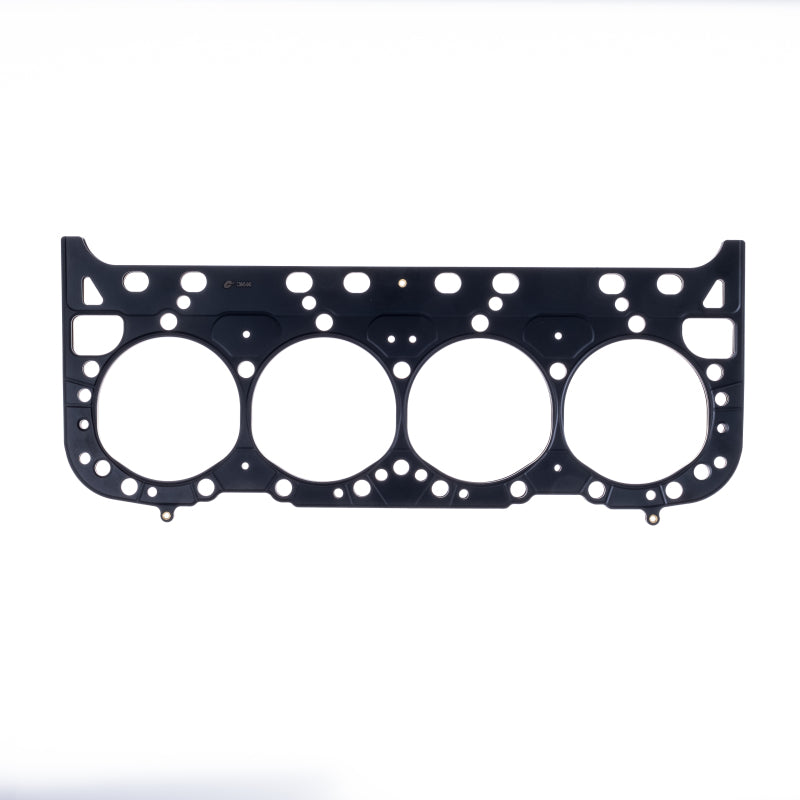

Cometic 92-96 GM LT1 Small Block 4.040 inch Bore .080 inch MLS-5 Headgasket (w/Valve Pockets)

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
1994-1996	Buick	Commercial Chassis	Base
1994-1995	Buick	Roadmaster	Base
1996	Buick	Roadmaster	Collector's Edition
1994-1995	Buick	Roadmaster	Estate Wagon
1996	Buick	Roadmaster	Estate Wagon Collector's Edition
1994-1995	Buick	Roadmaster	Limited
1996	Buick	Roadmaster	Limited Collector's Edition
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1993-1996	Chevrolet	Camaro	Z28
1994-1996	Chevrolet	Caprice	Classic
1994	Chevrolet	Caprice	Classic LS
1994	Chevrolet	Commercial Chassis	Base
1993	Chevrolet	Corvette	40th Anniversary Edition
1992-1996	Chevrolet	Corvette	Base
1996	Chevrolet	Corvette	Collector's Edition
1996	Chevrolet	Corvette	Grand Sport
1995	Chevrolet	Corvette	Indianapolis 500 Pace Car
1994-1996	Chevrolet	Impala	SS
1993-1996	Pontiac	Firebird	Formula
1993-1996	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
